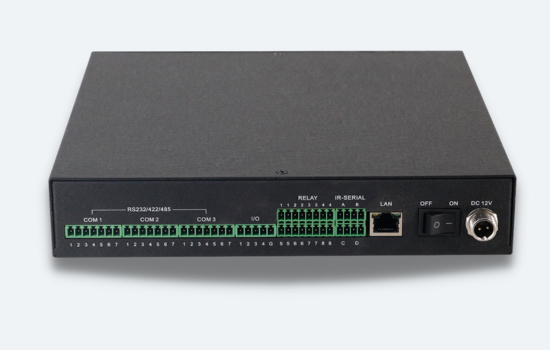

BYOD-2000
BYOD-2000 is a compact control hub designed to meet the audiovisual control needs of conference rooms and classrooms. It provides a range of control ports, including 3 x RS232/RS422/RS485, 8 x relay, 4 x IR, and 4 x IO input.
BYOD-2000 is designed for command control center, office and building automation, multimedia environment and home automation, It combined programmable logic and protocol with programmable user interface together, provide full network and intelligent central control technology. It is essential equipment for command center and C’ISR system, it is widely used for administration center, building control, meeting room, training center, exhibition center, industry and home automation.
Cloud programming without installing software
Remote debugging
Neural networks mode to inspect the real time operation
Sharing resources on cloud platform
Supports various network control protocols(TCP/UDP/Telnet/Http)
Supports arbitrary Linux+ platform and is free to migrate
Model | BYOD-2000 |
CPU | i.MX ARM Cortex-A7 528MHz |
Operating system | Linux 4.1.15 kernel |
Memory | 512M DDR3 RAM |
Flash | 512M Nand Flash |
RS232 | 3 - RS232/RS422/RS485 |
RELAY | 8 - isolated low voltage relay (normally open) 30VDC/AC 1A |
I/O | 4 - Digital I/O input |
INFRARED–SERIAL | 4 - infrared or one-way RS-232 serial port |
LAN | 1 - RJ45 10M/100M Ethernet interface |
RST | 1 - RST system reset button |
LED | 3 – LED system status indicator |
Power Supply | 24VDC 1A |
Working environment temperature | 0℃ ~50℃ |
Relative humidity of working environment | 10% to 90% |
