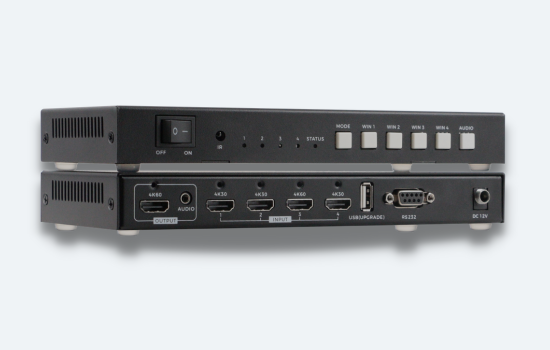

VPX 4100
VPX 4100 is a versatile video switcher that can not only be used as a conventional video switcher but also functions as a multi viewer. It allows users to display multiple video sources simultaneously on one screen, making it convenient for monitoring and previewing these videos. Additionally, VPX 4100 supports various mainstream resolutions and can display up to 4 video sources simultaneously on the same screen.
This is a high-performance 4K60 4X1 HDMI Multi-Viewer with fast switching switcher, which can display 4 channels of ultra-high-definition video signals on the same screen at the same time. Users can choose different screen splitting methods and switch between 4 channels of input signals. It supports 4K60/ 4K30/ 1080P/720P output and 3.5mm audio de-embedded, the input resolutions can up to 4K(three 4K30 inputs and one 4K60 input), when the 4 input signals are 1080p60 or below can truly realize the point-to-point lossless display. This multi-viewer also supports audio switching, which can switch the sound of any input signals. It can supports multiple control methods, users can control the device through the front push-button,IR remote or the professional RS232. In general, it is a very practical 4K60 multi-viewer with stable performance, simple installation, flexible control, which can be widely used in games, professional conferences, radio and television, security monitoring, securities markets and other fields .
Supports multiple working modes
Support up to 4K inputs and 4K60 output
Supports front panel push-button, IR and RS-232 control
Supports the audio switching
Supports the 3.5mm audio de-embedded

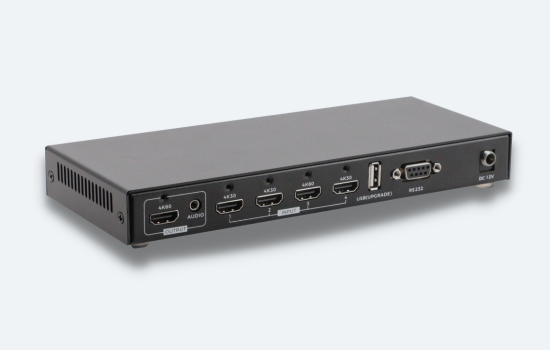

Input | 1 x HDMI2.0(4K60); 3 x HDMI1.4(4K30) |
Input resolution | 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x1200, 1680x10508, 1920x12008, 720x480 (480p), 720x576 (576p), 1280x720 (720p30), 1280x720 (720p50), 1280x720 (720p60), 1920x1080 (1080p24), 1920x1080 (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080 (1080p60), 3840x2160(2160p30),3840x2160 (2160p50), 3840x2160 (2160p60) |
Output | 1 x HDMI2.0 |
Output resolution | HDMI2.0: 1920x1080(1080p50), 1920x1080 (1080p60), 3840x2160 (2160p30) , 3840x2160 (2160p50) , 3840x2160 (2160p60) |
Audio | |
Input | 4 x HDMI |
Input audio signal | RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0 |
Output | 1 x HDMI2.0;1 x Analog Audio |
Output audio signal | RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0 |
Control method | |
Front panel button | MODE: Select display mode WIN1: Switch/select the inputs for Window 1 WIN2: Switch/select the inputs for Window 2 WIN3: Switch/select the inputs for Window 3 WIN4: Switch/select the inputs for Window 4(*Long press for 5 seconds to switch different output resolutions) AUDIO: Select the corresponding input signal(*Long press for 7 seconds to reset to factory model) |
IR | Can realize all the functions of the button, also support fast switching |
RS232 | The interface is a 3pin phoenix segment, which support third-party control |
General parameters | |
Operating temperature | 0 to +45°C (32 to + 113 °F) |
Storage temperature | -20 to +70°C (-4 to + 158 °F) |
Relative humidity | 10% to 90%, |
Static Protection | Human body discharge mode:±8kV (Air gap discharge)/ ±4kV (Contact discharge) |
Power supply | 12 V 1.5 A DC |
Power consumption | 10W(Max) |
Measure | 223X27X97(mm) |
Net weight | 0.8kg |
