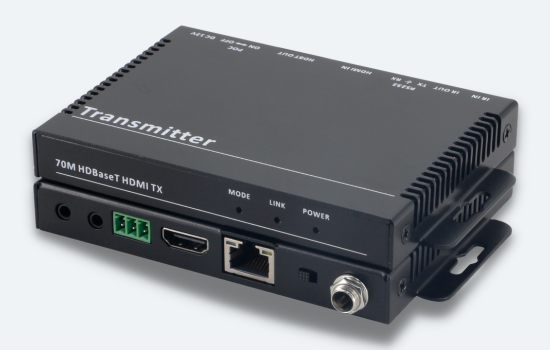

This slim/lite version HDMI extender which is using the advanced HDBaseT technology. It can transmit the HDMI signal, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power one side. It also can can work with other HDBaseT equipment, such as Sony HDBaseT projector. For the 1080P60Hz resolution, it can transmit to a distance of 100m/33oft, for 4K60Hz(4:2:0) it can up to 70m/220ft. This extender kit can support the EDID and the CEC pass-through, compliant with HDMI2.0, HDCP2.2.

It can be popularly used in media conferencing room, school, government, cinema and so on applications.

• Uses the HDBaseT technology extension over single CAT5e/6/7


• Supports FULL HD, UHD, 3D, 4K60(4:2:0)

• HDCP2.2, HDMI2.0

• Bidirectional IR&RS232 control signal transmission

• Power over Cable (POC) locally powered over Cat5e/6 cable at either end

• Supports 7.1 DTS Master HD, Dolby True HD,

• LED indicators, EDID pass-though

• Supports CEC control
